Coding Panel Description Dimensions Electrical Connection Specifications Price

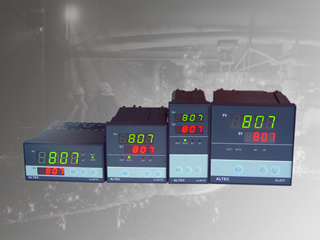

Coding



①.Dimensions(unit: mm) None 96*96*100 D 48*96*100, Vertical E 96*48*100, Horizontal M 72*72*100	②③.Output 1 & Output 2 0 None R Relay, (NO, 3A/250 VAC) L Logic, 20 V/10 mA , drive solid state relay(SSR) T Triac, drive SCR
④. Alarm 1 0 No alarm output R Relay, (NO, 3A/250 VAC)	e.g. AL807-R-R-R The controller with relay for output1 & output2, have alarm1 output. Dimension: 96×96×100mm.

Panel Description

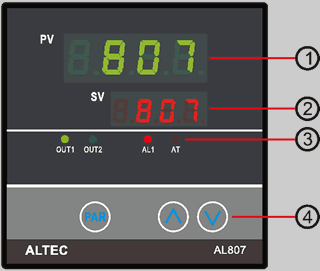

SN Item Function Description PV display Indicates the Process Value and Parameters SV display IndicatesSetpoint and Parameter values OUT1 output 1 indicator OUT2 output 2 indicator AL1 alarm 1 indicator AT PID Auto-Tuning indicator Flashes during PID auto-tuning execution PAR Parameter key Up key Down key

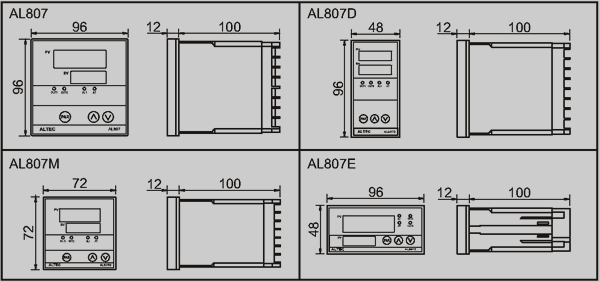

Dimensions

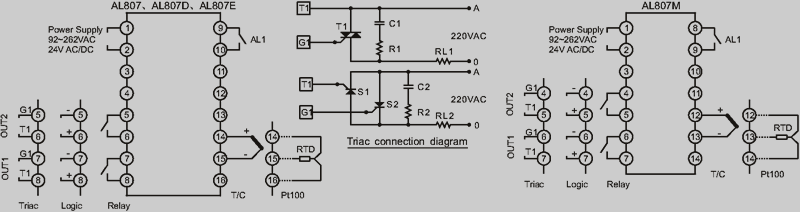

Electrical Connection

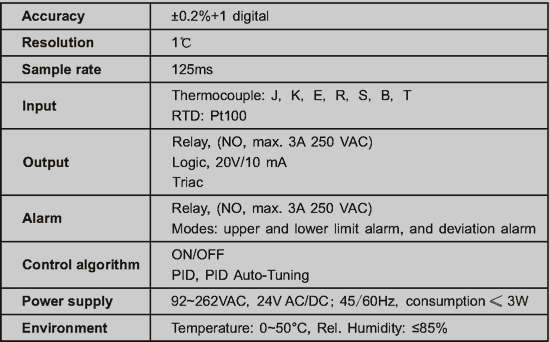

Specifications

Price

AL807(basic)	US$ 48.-
Output module:
Relay output(R)	+US$ 0.-
Logic output(L)	+US$ 0.-
Triac(T)	+US$ 2.70

---
