Products > Temperature Controllers > AL808



Coding

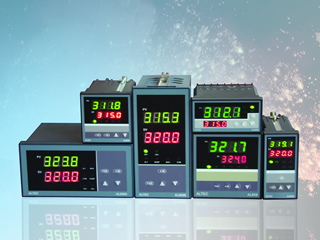

AL808
 Dimensions
Output 1
Output 2
Alarm 1
Communications
Options
¢Ù
¢Ú
¢Û
¢Ü
¢Ý
¢Þ
¢ß



¢Ù. Basic Instrument

AL808
 Universal PID process and temperature controller
AL809
 Motorized valve positioning controller

¢Ý. Alarm 1

0
 No alarm output
R
 Relay, (NO, 3A/250 VAC)

¢Ú.Dimensions(unit: mm)

None
 96*96*100
D
 48*96*100, Vertical
E
 96*48*100, Horizontal
M
 72*72*100
A
 160*80*100, Horizontal
B
 80*160*100, Vertical

¢Þ.Communications

0
 None
232
 RS232, 3 wire, comms distance: 15 m
422
 RS422, 4 wire, comms distance: 1.2 Km
485
 RS485, 2 wire, comms distance: 1.2 Km

¢Û¢Ü.Output 1 & Output 2

0
 None
R
 Relay, (NO, 3A/250 VAC)
L
 Logic, 20 V/10 mA , to drive solid state relay(SSR)
T
 Triac, to drive SCR
D
 Analog output (0-10 mA, 4-20 mA, 0-20 mA, 0-5V, 0-10 V)



¢ß.Option

0
 None
Rem
 Remote
QP4
 4 Segments program
PVT
 Process Value Transmission
QP8
 8 Segments program
SVT
 Setting Value Transmission
QP16
 16 Segments program
Prt
 Print
QP32
 32 Segments program
Clk
 Real Time Clock

Here are two examples:

AL808/R/R/R/0/0
Dimension: 96x96mm
Output 1: Relay
Output 2: Relay
Alarm 1: Relay
Comms: None
Option: None

AL808D/L/R/R/232/QP8
Dimension: 48x96mm
Output 1: Logic
Output 2: Relay
Alarm 1: Relay
Comms: RS232
Option: 8 segments time-temp program

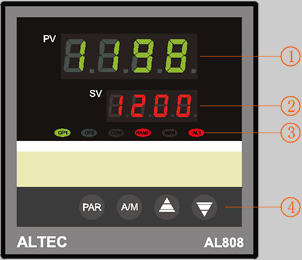

Panel Description

SN
Item
Function Description
PV display
Indicates the Process Value;
Display the Abbreviation of the Parameters
SV display
Indicates the Setpoint, parameter value, alarm code
OP1
 Output 1 indicator
OP2
 Output 2 indicator
COM
 Communication indicator
RAMP
 Program running indicator
MAN
 Manual operating mode indicator
AL1
 Alarm 1 indicator
PAR
 Parameter scroll pushbutton
A/M

Auto/Manual operation switch pushbutton

Increase value
Decrease value

Dimensions

Wiring

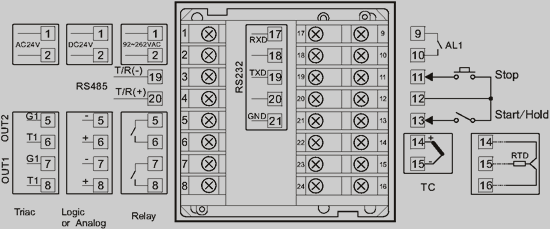

1. AL808 (Panel: 96*96)

2. AL808D/E (Panel: 48*96, 96*48)

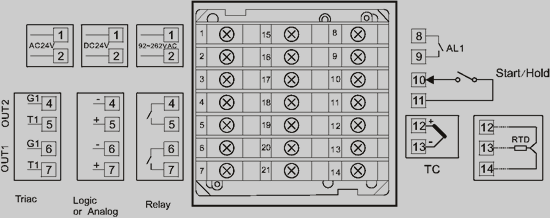

3. AL808M (Panel: 72*72)

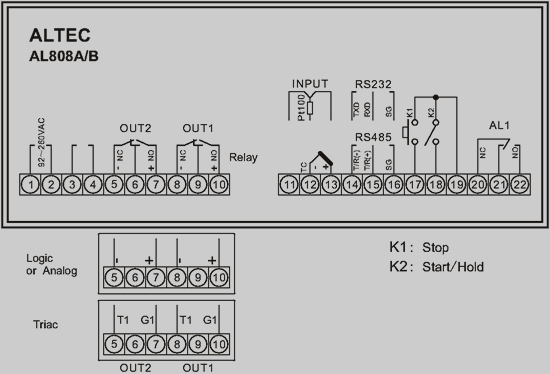

4. AL808A/B(Panel: 160*80, 80*160)

Specifications

Input
 Thermocouple Types: J, K, E, R, S, T, B, N
RTD: Pt100, Cu50
Analog Input
(DC mA, DC V)
0-20 mA
4-20 mA
-10.0-50 mV
0-10 V
Output
 Relay, max.250 VAC, 3A
Logic, to drive solid state relay(SSR)
Analog Output, 0-10mA, 0-20mA, 4-20mA, 0-5V, 1-5V, 0-10V
Accuracy
 ¡À0.1 °C
Resolution
 ¡À0.2% (+) 1 digit
Sample Rate
125 ms
Program Control
 1 program(profile)
Up to 16 segments
1-200 program loop cycles, or continuous loop cycling
Control Action
ON/OFF
PID
Communications
 RS-232
RS-485
Displays
 Upper, 4 digits, high brightness green LED
Lower, 4 digits, high brightness red LED
LED indicators: OP1, OP2, COM, RAMP,  MAN, AL1
Keypad
 4 keys
Dimensions
(unit: mm)
 96*96*100
72*72*100
48*96*100
96*48*100
160*80*94
80*160*94
Environmental
 Ambient Temp: 0-50 °C
Humidity: ¡Ü 85%
Power Supply
85-264 VAC, 45/60 Hz,    24V AC/DC 50/60Hz

Price

AL808(basic)
 US$ 60.-
Output module:
Aux. power supply output
+ US$ 0.-
Relay output(R)
+ US$ 0.-
Logic output(L)
+ US$ 0.-
Triac(T)
 + US$ 2.70
Tri-Phase Triac(3T)
 + US$ 20.30
Analog output(D)
+ US$ 13.50
Communication module:
RS232
+ US$ 27.00
RS422/RS485
+ US$ 27.00
Optional module:
4-Segments program(QP4)
+ US$ 27.00
8-Segments program(QP8)
+ US$ 40.50
16-Segments program(QP16)
+ US$ 53.30
30-Segments program(QP30)
+ US$ 67.50
Data print
+ US$ 40.50
Measured value transmission
+ US$ 27.00
