Products > Temperature Controllers > AL810



Coding

Panel Description

Dimensions

Wiring

Specifications

Price

Typical Application

Coding

AL810
Communications
Options

①. Communications

0
None
232
RS232, 3 wire, comms distance: 15 m
485
RS485, 2 wire, comms distance: 1.2 Km

②. Options

0
None
Rem
Remote
QP4
4 Segments program
PVT
Process Value Transmission
QP8
8 Segments program
SVT
Setting Value Transmission
QP16
16 Segments program
Prt
Print
QP30
30 Segments program
Clk
Real Time Clock

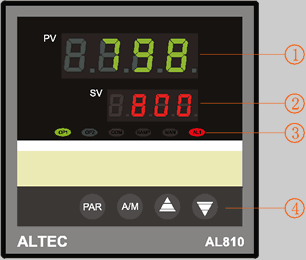

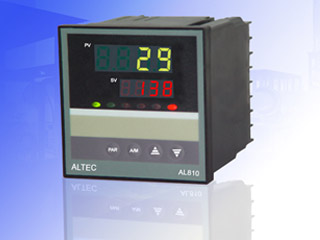

Panel Description

SN
Item
Function Description
PV display
Indicates the Process Value;
Display the Abbreviation of the Parameters
SV display
Indicates the Setpoint, parameter value, alarm code
OP1
Output 1 indicator
OP2
Output 2 indicator
COM
Communication indicator
RAMP
Program running indicator
MAN
Manual operating mode indicator
AL1
Alarm 1 indicator
PAR
Parameter scroll pushbutton
A/M

Auto/Manual operation switch pushbutton

Increase value
Decrease value

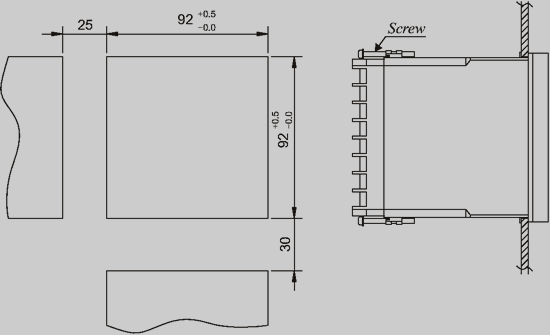

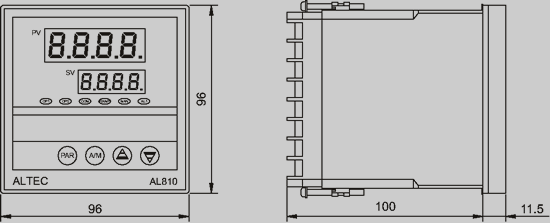

Dimensions

Wiring

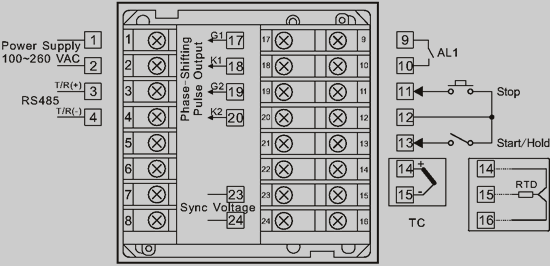

Real Terminal Connection





Specifications

Input
Thermocouple Types: J, K, E, R, S, T, B, N
RTD: Pt100, Cu50
Analog Input
(DC mA, DC V)
0-20 mA
4-20 mA
-10.0-50 mV
0-10 V
Output
Phase-shifting pulse, drive SCR
Accuracy
±0.1 °C
Resolution
±0.2% (+) 1 digit
Sampling Time
125 ms
Program Control
1 program(profile)
segments:4, 8, 16, 30
1-200 program loop cycles, or continuous loop cycling
Control Action
PID
Communications
RS-232
RS-485
Displays
Upper, 4 digits, high brightness green LED
Lower, 4 digits, high brightness red LED
LED indicators: OP1, OP2, COM, RAMP,  MAN, AL1
Dimensions
96*96*100mm
Environmental
Ambient Temp: 0-50 °C
Humidity: ≤ 85%
Power Supply
85-264 VAC, 45/60 Hz   24V AC/DC 50/60Hz

Price

AL810(basic)
US$ 88.-
Communication module:
RS232
+ US$ 27.-
RS422/RS485
+ US$ 27.-
Optional module:
4-Segments program(QP4)
+ US$ 27.-
8-Segments program(QP8)
+ US$ 40.50
16-Segments program(QP16)
+ US$ 53.30
30-Segments program(QP30)
+ US$ 67.50
Data print
+ US$ 40.50
Measured value transmission
+ US$ 27.-

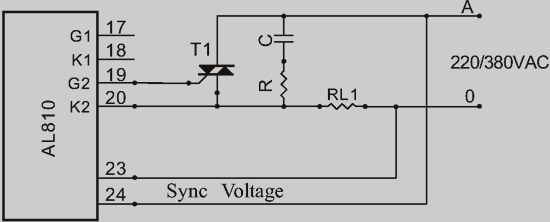

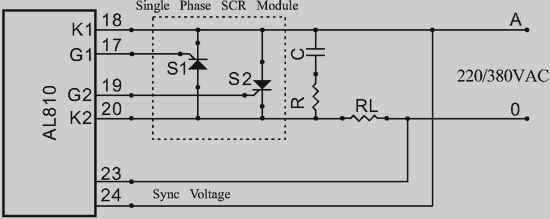

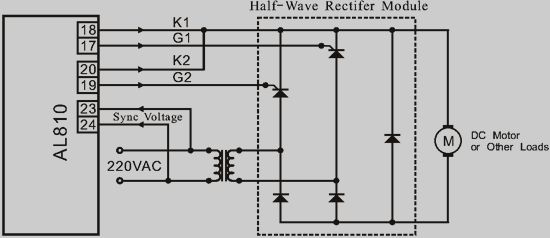

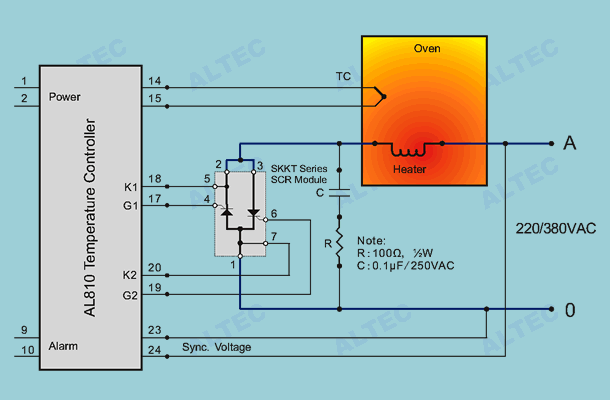

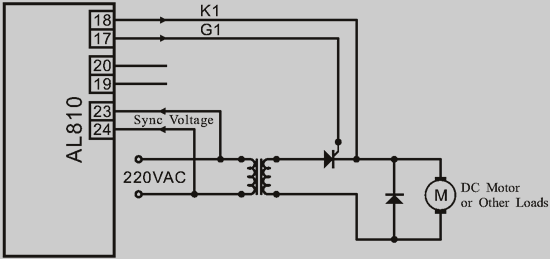

Typical Application
