Coding Panel Description Dimensions Wiring Specifications Price Typical Applications

Coding

AL830	Options
	①

①.Options

0	None
QP4	4 Segments program
QP8	8 Segments program
QP16	16 Segments program
QP30	30 Segments program

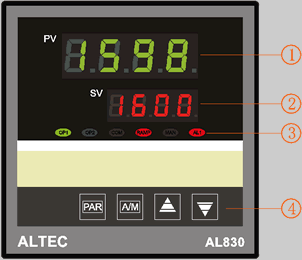

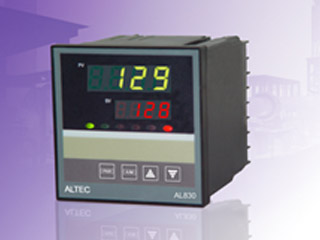

Panel Description

SN Item Function Description PV display Indicates the Process Value; Display the Abbreviation of the Parameters SV display Indicates the Setpoint, parameter value, alarm code OP1 Output 1 indicator OP2 Output 2 indicator COM Communication indicator RAMP Program running indicator MAN Manual operating mode indicator AL1 Alarm 1 indicator PAR Parameter scroll pushbutton A/M Auto/Manual operation switch pushbutton Increase value Decrease value

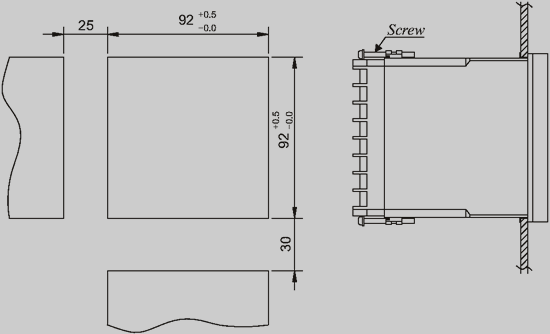

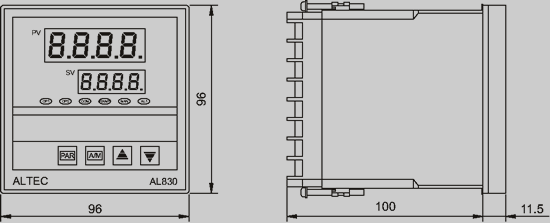

Dimensions

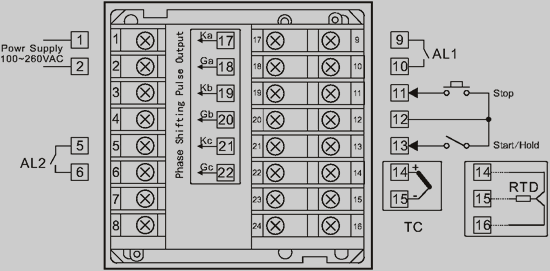

Wiring

Specifications

Input	Thermocouple Types: J, K, E, R, S, T, B, N RTD: Pt100, Cu50
Analog Input (DC mA, DC V)	0-20 mA 4-20 mA -10.0-50 mV 0-10 V
Output	Triac
Accuracy	±0.1 °C
Resolution	±0.2% (+) 1 digit
Sampling Time	125 ms
Program Control	1 program(profile) segments: 4, 8, 16, 30 1-200 program loop cycles, or continuous loop cycling
Control Action	ON/OFF PID
Communications	RS-232 RS-485
Displays	Upper, 4 digits, high brightness green LED Lower, 4 digits, high brightness red LED LED indicators: OP1, OP2, COM, RAMP,  MAN, AL1
Keypad	4 keys
Dimensions (unit: mm)	96*96*100
Environmental	Ambient Temp: 0-50 °C Humidity: ≤ 85%
Power Supply	85-264 VAC, 45/60 Hz

Price

AL830(basic)	US$ 81.-
Optional module:
4-Segments program(QP4)	+ US$ 27.-
8-Segments program(QP8)	+ US$ 40.50
16-Segments program(QP16)	+ US$ 53.30
30-Segments program(QP30)	+ US$ 67.50

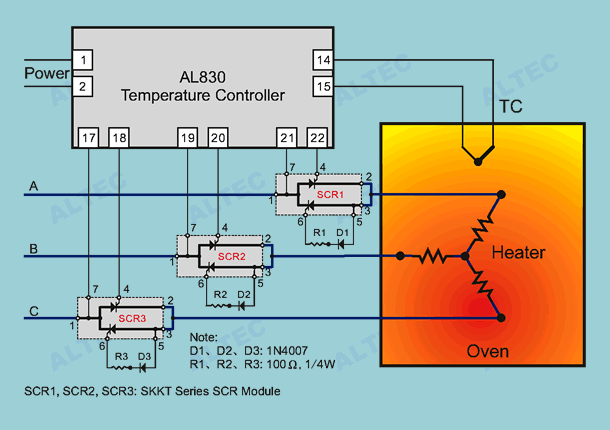

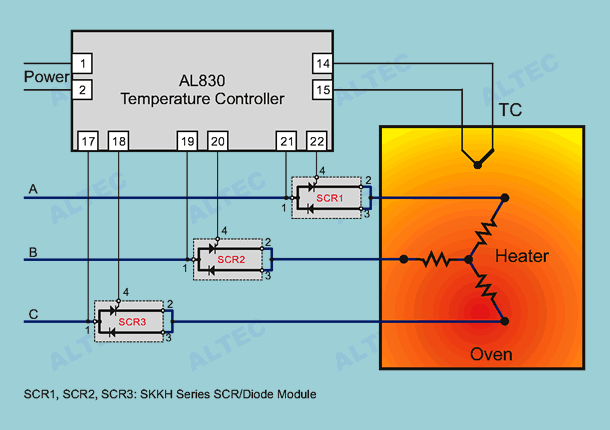

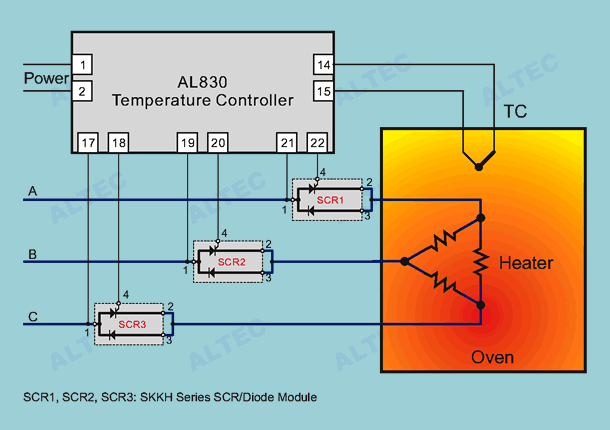

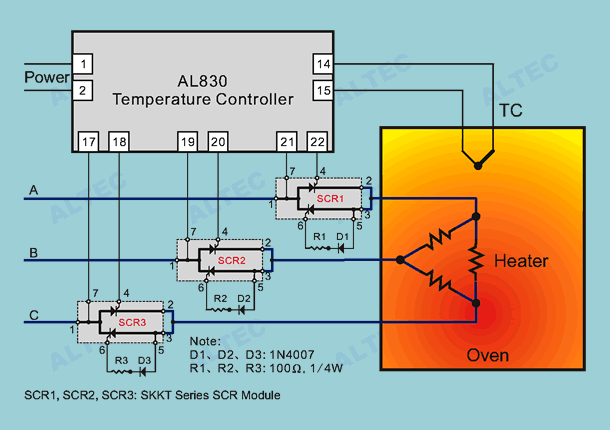

Typical Applications

---
