Coding Technical Data Dimensions Mounting Wiring Force Analysis

Coding

CTS105-17-300
　　　(1)　(2)

(1) Dimension

Code	Description
105-17	Outer Diameter: Φ105mm, bearing inner diameter: Φ17mm
125-25	Outer Diameter: Φ125mm, bearing inner diameter: Φ25mm

(2) Measurement Range

Code	Description
250	250 N
300	300 N
500	500 N
1000	1000 N

Technical Data

Insulation Resistance	≥ 2000 MΩ(100 V)	Safe Overload	150& F.S
Input Impedance	350 Ω	Non-lineatity	0.1% F.S
Output Impedance	350±1 Ω	Hysteresis	0.1% F.S
Excitation	6~12 VDC	Repeatability	0.1% F.S
Consumption	≤0.4 W	Weight	4 Kg
Zero	≤1% F.S.	Socket	XS12J5A
Rated Output	2 mV/V	Plug	XS12K5P

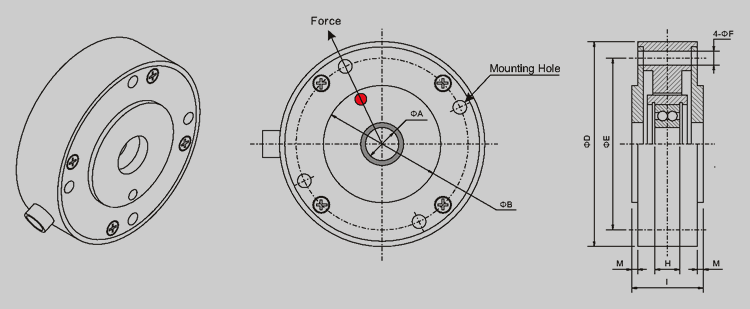

Dimensions

Basic Model	Capacity (kg)	Dimensions (mm)
		A	B	C	D	H	I	G	E	F	M
CTS105-17	0-30	17	60		105	16	36.5		88	7	3
CTS125-25	0-30, 50	25	70		125	18	47.5		105	7	4

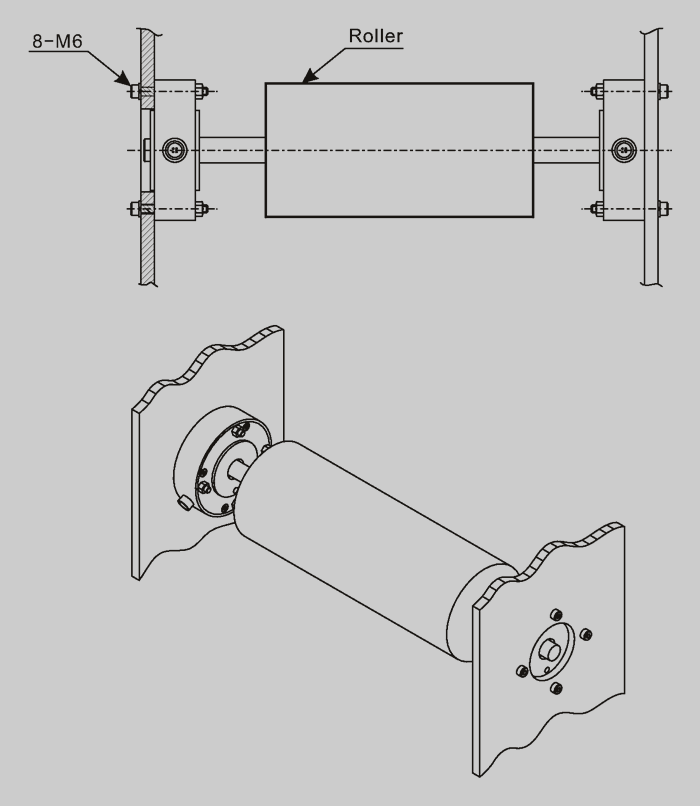

Mounting

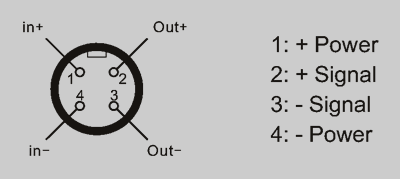

Wiring

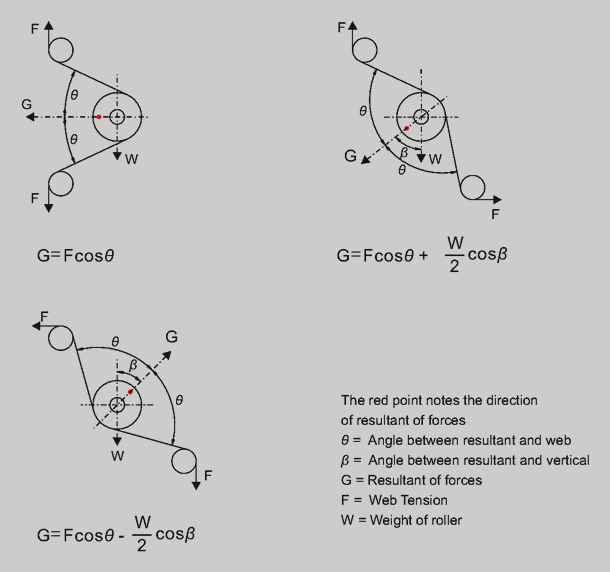

Force Analysis

---
